Visualization

Visualising lineages

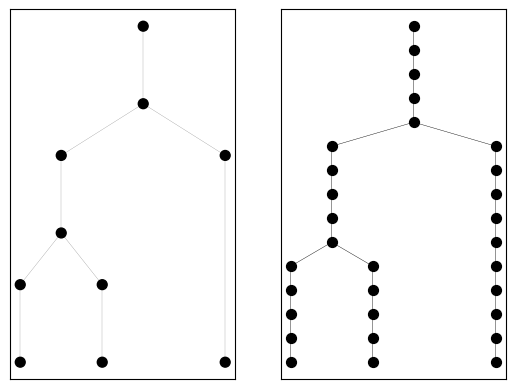

Usually, tracked lineages contain hundreds of thousands of nodes, thus calculating each position for the nodes of the tree graph is time-consuming. To solve this problem, we decided to use a model that reduces the number of nodes to a minimum. In this model, we only use the start and end of each chain, while the length of their link would correspond to the time distance between the two nodes, as shown in the next image.

This way, the whole lineage can be plotted efficiently, even if the second graph is more representative of the truth.

API Reference

lineagetree.plot

Functions:

Name	Description
draw_tree_graph	Function to plot the tree graph.
plot_all_lineages	Plots all lineages.
plot_dtw_heatmap	Plot DTW cost matrix between two chains in heatmap format
plot_dtw_trajectory	Plots DTW trajectories aligment between two chains in 2D or 3D
plot_subtree	Plots the subtree spawn by a node.

__plot_edges

__plot_edges(
    hier: dict,
    lnks_tms: dict,
    selected_edges: Iterable,
    color: str | dict | list,
    lw: float,
    ax: Axes,
    default_color: str = "black",
    **kwargs
) -> None

Private method that plots the edges of the tree.

Source code in src/lineagetree/plot.py

def __plot_edges(
    hier: dict,
    lnks_tms: dict,
    selected_edges: Iterable,
    color: str | dict | list,
    lw: float,
    ax: plt.Axes,
    default_color: str = "black",
    **kwargs,
) -> None:
    """
    Private method that plots the edges of the tree.
    """
    if isinstance(color, dict):
        selected_edges = color.keys()
    lines = []
    c = []
    for pred, succs in lnks_tms["links"].items():
        for suc in succs:
            lines.append(
                [
                    [hier[suc][0], hier[suc][1]],
                    [hier[pred][0], hier[pred][1]],
                ]
            )
            if pred in selected_edges:
                if isinstance(color, str | list):
                    c.append(color)
                elif isinstance(color, dict):
                    c.append(color[pred])
            else:
                c.append(default_color)
    lc = LineCollection(lines, colors=c, linewidth=lw, **kwargs)
    ax.add_collection(lc)

__plot_nodes

__plot_nodes(
    hier: dict,
    selected_nodes: set,
    color: str | dict | list,
    size: int | float,
    ax: Axes,
    leaves: set,
    default_color: str = "black",
    **kwargs
) -> None

Private method that plots the nodes of the tree.

Source code in src/lineagetree/plot.py

def __plot_nodes(
    hier: dict,
    selected_nodes: set,
    color: str | dict | list,
    size: int | float,
    ax: plt.Axes,
    leaves: set,
    default_color: str = "black",
    **kwargs,
) -> None:
    """
    Private method that plots the nodes of the tree.
    """
    hier_no_leaves = copy.copy(hier)
    for leaf in leaves:
        hier_no_leaves.pop(leaf, None)
    if isinstance(color, dict):
        color = [color.get(k, default_color) for k in hier_no_leaves]
    elif isinstance(color, str | list):
        color = [
            color if node in selected_nodes else default_color
            for node in hier_no_leaves
        ]
    hier_pos = np.array(list(hier_no_leaves.values()))
    ax.scatter(*hier_pos.T, s=size, zorder=10, color=color, **kwargs)

_create_dict_of_plots

_create_dict_of_plots(
    lT: LineageTree,
    node: int | Iterable[int] | None = None,
    start_time: int | None = None,
    end_time: int | None = None,
) -> dict[int, dict]

Generates a dictionary of graphs where the keys are the index of the graph and the values are the graphs themselves which are produced by create_links_and_chains

Parameters:

Name	Type	Description	Default
lT	LineageTree	The LineageTree instance.	required
node	int or Iterable of int	The id of the node/nodes to produce the simple graphs, if not provided or None will calculate the dicts for every root that starts before 'start_time'	None
start_time	int	Important only if there are no nodes it will produce the graph of every root that starts before or at start time. If not provided or None the 'start_time' defaults to the start of the dataset.	None
end_time	int	The last timepoint to be considered, if not provided or None the last timepoint of the dataset (t_e) is considered.	None

Returns:

Type	Description
dict mapping int to dict	The keys are just index values 0-n and the values are the graphs produced.

Source code in src/lineagetree/plot.py

def _create_dict_of_plots(
    lT: LineageTree,
    node: int | Iterable[int] | None = None,
    start_time: int | None = None,
    end_time: int | None = None,
) -> dict[int, dict]:
    """Generates a dictionary of graphs where the keys are the index of the graph and
    the values are the graphs themselves which are produced by `create_links_and_chains`

    Parameters
    ----------
    lT : LineageTree
        The LineageTree instance.
    node : int or Iterable of int, optional
        The id of the node/nodes to produce the simple graphs, if not provided or None will
        calculate the dicts for every root that starts before 'start_time'
    start_time : int, optional
        Important only if there are no nodes it will produce the graph of every
        root that starts before or at start time. If not provided or None the 'start_time' defaults to the start of the dataset.
    end_time : int, optional
        The last timepoint to be considered, if not provided or None the last timepoint of the
        dataset (t_e) is considered.

    Returns
    -------
    dict mapping int to dict
        The keys are just index values 0-n and the values are the graphs produced.
    """
    if start_time is None:
        start_time = lT.t_b
    if end_time is None:
        end_time = lT.t_e
    if node is None:
        mothers = [root for root in lT.roots if lT._time[root] <= start_time]
    elif isinstance(node, Iterable):
        mothers = node
    else:
        mothers = [node]
    return {
        i: create_links_and_chains(lT, mother, end_time=end_time)
        for i, mother in enumerate(mothers)
    }

draw_tree_graph

draw_tree_graph(
    lT: LineageTree,
    hier: dict[int, tuple[int, int]],
    lnks_tms: dict[str, dict[int, list | int]],
    selected_nodes: list | set | None = None,
    selected_edges: list | set | None = None,
    color_of_nodes: str | dict = "magenta",
    color_of_edges: str | dict = "magenta",
    size: int | float = 10,
    lw: float = 0.3,
    ax: Axes | None = None,
    default_color: str = "black",
    **kwargs
) -> tuple[plt.Figure, plt.Axes]

Function to plot the tree graph.

Parameters:

Name	Type	Description	Default
lT	LineageTree	The LineageTree instance.	required
hier	dict mapping int to tuple of int	Dictionary that contains the positions of all nodes.	required
lnks_tms	dict mapping string to dictionaries mapping int to list or int	'links' : conatains the hierarchy of the nodes (only start and end of each chain) 'times' : contains the distance between the start and the end of each chain.	required
selected_nodes	list or set	Which nodes are to be selected (Painted with a different color, according to 'color_'of_nodes')	None
selected_edges	list or set	Which edges are to be selected (Painted with a different color, according to 'color_'of_edges')	None
color_of_nodes	str	Color of selected nodes	"magenta"
color_of_edges	str	Color of selected edges	"magenta"
size	int	Size of the nodes, defaults to 10	10
lw	float	The width of the edges of the tree graph, defaults to 0.3	0.3
ax	Axes	Plot the graph on existing ax. If not provided or None a new ax is going to be created.	None
default_color	str	Default color of nodes	"black"

Returns:

Type	Description
Figure	The matplotlib figure
Axes	The matplotlib ax

Source code in src/lineagetree/plot.py

def draw_tree_graph(
    lT: LineageTree,
    hier: dict[int, tuple[int, int]],
    lnks_tms: dict[str, dict[int, list | int]],
    selected_nodes: list | set | None = None,
    selected_edges: list | set | None = None,
    color_of_nodes: str | dict = "magenta",
    color_of_edges: str | dict = "magenta",
    size: int | float = 10,
    lw: float = 0.3,
    ax: plt.Axes | None = None,
    default_color: str = "black",
    **kwargs,
) -> tuple[plt.Figure, plt.Axes]:
    """Function to plot the tree graph.

    Parameters
    ----------
    lT : LineageTree
        The LineageTree instance.
    hier : dict mapping int to tuple of int
        Dictionary that contains the positions of all nodes.
    lnks_tms : dict mapping string to dictionaries mapping int to list or int
        - 'links' : conatains the hierarchy of the nodes (only start and end of each chain)
        - 'times' : contains the distance between the  start and the end of each chain.
    selected_nodes : list or set, optional
        Which nodes are to be selected (Painted with a different color, according to 'color_'of_nodes')
    selected_edges : list or set, optional
        Which edges are to be selected (Painted with a different color, according to 'color_'of_edges')
    color_of_nodes : str, default="magenta"
        Color of selected nodes
    color_of_edges : str, default="magenta"
        Color of selected edges
    size : int, default=10
        Size of the nodes, defaults to 10
    lw : float, default=0.3
        The width of the edges of the tree graph, defaults to 0.3
    ax : plt.Axes, optional
        Plot the graph on existing ax. If not provided or None a new ax is going to be created.
    default_color : str, default="black"
        Default color of nodes

    Returns
    -------
    plt.Figure
        The matplotlib figure
    plt.Axes
        The matplotlib ax
    """
    if selected_nodes is None:
        selected_nodes = []
    if selected_edges is None:
        selected_edges = []
    if ax is None:
        _, ax = plt.subplots()
    else:
        ax.clear()
    if not isinstance(selected_nodes, set):
        selected_nodes = set(selected_nodes)
    if not isinstance(selected_edges, set):
        selected_edges = set(selected_edges)
    if 0 < size:
        __plot_nodes(
            hier,
            selected_nodes,
            color_of_nodes,
            size=size,
            ax=ax,
            default_color=default_color,
            leaves={k for k, v in lnks_tms["links"].items() if not v},
            **kwargs,
        )
    if not color_of_edges:
        color_of_edges = color_of_nodes
    __plot_edges(
        hier,
        lnks_tms,
        selected_edges,
        color_of_edges,
        lw,
        ax,
        default_color=default_color,
        **kwargs,
    )
    ax.autoscale()
    plt.draw()
    ax.get_yaxis().set_visible(False)
    ax.get_xaxis().set_visible(False)
    return ax.get_figure(), ax

plot_all_lineages

plot_all_lineages(
    lT: LineageTree,
    nodes: list | None = None,
    last_time_point_to_consider: int | None = None,
    nrows: int = 1,
    figsize: tuple[int, int] = (10, 15),
    dpi: int = 100,
    fontsize: int = 15,
    axes: Axes | None = None,
    vert_gap: int = 1,
    **kwargs
) -> tuple[plt.Figure, plt.Axes, dict[plt.Axes, int]]

Plots all lineages.

Parameters:

Name	Type	Description	Default
lT	LineageTree	The LineageTree instance.	required
nodes	list	The nodes spawning the graphs to be plotted.	None
last_time_point_to_consider	int	Which timepoints and upwards are the graphs to be plotted. For example if start_time is 10, then all trees that begin on tp 10 or before are calculated. Defaults to None, where it will plot all the roots that exist on lT.t_b.	None
nrows	int	How many rows of plots should be printed.	1
figsize	tuple	The size of the figure.	(10, 15)
dpi	int	The dpi of the figure.	100
fontsize	int	The fontsize of the labels.	15
axes	Axes	The axes to plot the graphs on. If None or not provided new axes are going to be created.	None
vert_gap	int	space between the nodes, defaults to 1	1
**kwargs		kwargs accepted by matplotlib.pyplot.plot, matplotlib.pyplot.scatter	{}

Returns:

Type	Description
Figure	The figure
Axes	The axes
dict of plt.Axes to int	A dictionary that maps the axes to the root of the tree.

Source code in src/lineagetree/plot.py

def plot_all_lineages(
    lT: LineageTree,
    nodes: list | None = None,
    last_time_point_to_consider: int | None = None,
    nrows: int = 1,
    figsize: tuple[int, int] = (10, 15),
    dpi: int = 100,
    fontsize: int = 15,
    axes: plt.Axes | None = None,
    vert_gap: int = 1,
    **kwargs,
) -> tuple[plt.Figure, plt.Axes, dict[plt.Axes, int]]:
    """Plots all lineages.

    Parameters
    ----------
    lT : LineageTree
        The LineageTree instance.
    nodes : list, optional
        The nodes spawning the graphs to be plotted.
    last_time_point_to_consider : int, optional
        Which timepoints and upwards are the graphs to be plotted.
        For example if start_time is 10, then all trees that begin
        on tp 10 or before are calculated. Defaults to None, where
        it will plot all the roots that exist on `lT.t_b`.
    nrows : int, default=1
        How many rows of plots should be printed.
    figsize : tuple, default=(10, 15)
        The size of the figure.
    dpi : int, default=100
        The dpi of the figure.
    fontsize : int, default=15
        The fontsize of the labels.
    axes : plt.Axes, optional
        The axes to plot the graphs on. If None or not provided new axes are going to be created.
    vert_gap : int, default=1
        space between the nodes, defaults to 1
    **kwargs:
        kwargs accepted by matplotlib.pyplot.plot, matplotlib.pyplot.scatter

    Returns
    -------
    plt.Figure
        The figure
    plt.Axes
        The axes
    dict of plt.Axes to int
        A dictionary that maps the axes to the root of the tree.
    """
    nrows = int(nrows)
    if last_time_point_to_consider is None:
        last_time_point_to_consider = lT.t_b
    if nrows < 1 or not nrows:
        nrows = 1
        raise Warning("Number of rows has to be at least 1")
    if nodes:
        graphs = {
            i: lT._create_dict_of_plots(node) for i, node in enumerate(nodes)
        }
    else:
        graphs = lT._create_dict_of_plots(
            start_time=last_time_point_to_consider
        )
    pos = {
        i: hierarchical_pos(
            g,
            g["root"],
            ycenter=-int(lT._time[g["root"]]),
            vert_gap=vert_gap,
        )
        for i, g in graphs.items()
    }
    if axes is None:
        ncols = int(len(graphs) // nrows) + (+np.sign(len(graphs) % nrows))
        figure, axes = plt.subplots(
            figsize=figsize, nrows=nrows, ncols=ncols, dpi=dpi, sharey=True
        )
    else:
        figure, axes = axes.flatten()[0].get_figure(), axes
        if len(axes.flatten()) < len(graphs):
            raise Exception(
                f"Not enough axes, they should be at least {len(graphs)}."
            )
    flat_axes = axes.flatten() if hasattr(axes, "flatten") else [axes]
    ax2root = {}
    min_width, min_height = float("inf"), float("inf")
    for ax in flat_axes:
        bbox = ax.get_window_extent().transformed(
            figure.dpi_scale_trans.inverted()
        )
        min_width = min(min_width, bbox.width)
        min_height = min(min_height, bbox.height)

    adjusted_fontsize = fontsize * min(min_width, min_height) / 5
    for i, graph in graphs.items():
        lT.draw_tree_graph(
            hier=pos[i], lnks_tms=graph, ax=flat_axes[i], **kwargs
        )
        root = graph["root"]
        ax2root[flat_axes[i]] = root
        label = lT.labels.get(root, "Unlabeled")
        xlim = flat_axes[i].get_xlim()
        ylim = flat_axes[i].get_ylim()
        x_pos = (xlim[0] + xlim[1]) / 2
        y_pos = ylim[1] * 0.8
        flat_axes[i].text(
            x_pos,
            y_pos,
            label,
            fontsize=adjusted_fontsize,
            color="black",
            ha="center",
            va="center",
            bbox={
                "facecolor": "white",
                "alpha": 0.5,
                "edgecolor": "green",
            },
        )
    [figure.delaxes(ax) for ax in flat_axes if not ax.has_data()]
    return flat_axes[0].get_figure(), axes, ax2root

plot_dtw_heatmap

plot_dtw_heatmap(
    lT: LineageTree,
    nodes1: int,
    nodes2: int,
    threshold: int = 1000,
    regist: bool = True,
    start_d: int = 0,
    back_d: int = 0,
    fast: bool = False,
    w: int = 0,
    centered_band: bool = True,
) -> tuple[float, plt.Figure]

Plot DTW cost matrix between two chains in heatmap format

Parameters:

Name	Type	Description	Default
lT	LineageTree	The LineageTree instance.	required
nodes1	int	node to compare distance	required
nodes2	int	node to compare distance	required
threshold	int	set a maximum number of points a chain can have	1000
regist	bool	Rotate and translate trajectories	True
start_d	int	start delay	0
back_d	int	end delay	0
fast	bool	if True, the algorithm will use a faster version but might not find the optimal alignment	False
w	int	window size	0
centered_band	bool	when running the fast algorithm, True if the windown is centered	True

Returns:

Type	Description
float	DTW distance
Figure	Heatmap of cost matrix with opitimal path

Source code in src/lineagetree/plot.py

def plot_dtw_heatmap(
    lT: LineageTree,
    nodes1: int,
    nodes2: int,
    threshold: int = 1000,
    regist: bool = True,
    start_d: int = 0,
    back_d: int = 0,
    fast: bool = False,
    w: int = 0,
    centered_band: bool = True,
) -> tuple[float, plt.Figure]:
    """
    Plot DTW cost matrix between two chains in heatmap format

    Parameters
    ----------
    lT : LineageTree
        The LineageTree instance.
    nodes1 : int
        node to compare distance
    nodes2 : int
        node to compare distance
    threshold : int, default=1000
        set a maximum number of points a chain can have
    regist : bool, default=True
        Rotate and translate trajectories
    start_d : int, default=0
        start delay
    back_d : int, default=0
        end delay
    fast : bool, default=False
        if `True`, the algorithm will use a faster version but might not find the optimal alignment
    w : int, default=0
        window size
    centered_band : bool, default=True
        when running the fast algorithm, `True` if the windown is centered

    Returns
    -------
    float
        DTW distance
    plt.Figure
        Heatmap of cost matrix with opitimal path
    """
    cost, path, cost_mat, pos_chain1, pos_chain2 = lT.calculate_dtw(
        nodes1,
        nodes2,
        threshold,
        regist,
        start_d,
        back_d,
        fast,
        w,
        centered_band,
        cost_mat_p=True,
    )

    fig = plt.figure(figsize=(8, 6))
    ax = fig.add_subplot(1, 1, 1)
    im = ax.imshow(
        cost_mat, cmap="viridis", origin="lower", interpolation="nearest"
    )
    plt.colorbar(im)
    ax.set_title("Heatmap of DTW Cost Matrix")
    ax.set_xlabel("Tree 1")
    ax.set_ylabel("tree 2")
    x_path, y_path = zip(*path, strict=True)
    ax.plot(y_path, x_path, color="black")

    return cost, fig

plot_dtw_trajectory

plot_dtw_trajectory(
    lT: LineageTree,
    nodes1: int,
    nodes2: int,
    threshold: int = 1000,
    regist: bool = True,
    start_d: int = 0,
    back_d: int = 0,
    fast: bool = False,
    w: int = 0,
    centered_band: bool = True,
    projection: Literal[
        "3d", "xy", "xz", "yz", "pca", None
    ] = None,
    alig: bool = False,
) -> tuple[float, plt.Figure]

Plots DTW trajectories aligment between two chains in 2D or 3D

Parameters:

Name	Type	Description	Default
lT	LineageTree	The LineageTree instance.	required
nodes1	int	node to compare distance	required
nodes2	int	node to compare distance	required
threshold	int	set a maximum number of points a chain can have	1000
regist	bool	Rotate and translate trajectories	True
start_d	int	start delay	0
back_d	int	end delay	0
w	int	window size	0
fast	bool	True if the user wants to run the fast algorithm with window restrains	False
centered_band	bool	if running the fast algorithm, True if the windown is centered	True
projection	('3d', 'xy', 'xz', 'yz', 'pca')	specify which 2D to plot -> "3d" : for the 3d visualization "xy" or None (default) : 2D projection of axis x and y "xz" : 2D projection of axis x and z "yz" : 2D projection of axis y and z "pca" : PCA projection	"3d"
alig	bool	True to show alignment on plot	False

Returns:

Type	Description
float	DTW distance
figure	Trajectories Plot

Source code in src/lineagetree/plot.py

def plot_dtw_trajectory(
    lT: LineageTree,
    nodes1: int,
    nodes2: int,
    threshold: int = 1000,
    regist: bool = True,
    start_d: int = 0,
    back_d: int = 0,
    fast: bool = False,
    w: int = 0,
    centered_band: bool = True,
    projection: Literal["3d", "xy", "xz", "yz", "pca", None] = None,
    alig: bool = False,
) -> tuple[float, plt.Figure]:
    """
    Plots DTW trajectories aligment between two chains in 2D or 3D

    Parameters
    ----------
    lT : LineageTree
        The LineageTree instance.
    nodes1 : int
        node to compare distance
    nodes2 : int
        node to compare distance
    threshold : int, default=1000
        set a maximum number of points a chain can have
    regist : bool, default=True
        Rotate and translate trajectories
    start_d : int, default=0
        start delay
    back_d : int, default=0
        end delay
    w : int, default=0
        window size
    fast : bool, default=False
        True if the user wants to run the fast algorithm with window restrains
    centered_band : bool, default=True
        if running the fast algorithm, True if the windown is centered
    projection : {"3d", "xy", "xz", "yz", "pca"}, optional
        specify which 2D to plot ->
        "3d" : for the 3d visualization
        "xy" or None (default) : 2D projection of axis x and y
        "xz" : 2D projection of axis x and z
        "yz" : 2D projection of axis y and z
        "pca" : PCA projection
    alig : bool
        True to show alignment on plot

    Returns
    -------
    float
        DTW distance
    figure
        Trajectories Plot
    """
    (
        distance,
        alignment,
        cost_mat,
        pos_chain1,
        pos_chain2,
    ) = lT.calculate_dtw(
        nodes1,
        nodes2,
        threshold,
        regist,
        start_d,
        back_d,
        fast,
        w,
        centered_band,
        cost_mat_p=True,
    )

    fig = plt.figure(figsize=(10, 6))

    if projection == "3d":
        ax = fig.add_subplot(1, 1, 1, projection="3d")
    else:
        ax = fig.add_subplot(1, 1, 1)

    if projection == "3d":
        ax.plot(
            pos_chain1[:, 0],
            pos_chain1[:, 1],
            pos_chain1[:, 2],
            "-",
            label=f"root = {nodes1}",
        )
        ax.plot(
            pos_chain2[:, 0],
            pos_chain2[:, 1],
            pos_chain2[:, 2],
            "-",
            label=f"root = {nodes2}",
        )
        ax.set_ylabel("y position")
        ax.set_xlabel("x position")
        ax.set_zlabel("z position")
    else:
        if projection == "xy" or projection == "yx" or projection is None:
            __plot_2d(
                pos_chain1,
                pos_chain2,
                nodes1,
                nodes2,
                ax,
                0,
                1,
                "x position",
                "y position",
            )
        elif projection == "xz" or projection == "zx":
            __plot_2d(
                pos_chain1,
                pos_chain2,
                nodes1,
                nodes2,
                ax,
                0,
                2,
                "x position",
                "z position",
            )
        elif projection == "yz" or projection == "zy":
            __plot_2d(
                pos_chain1,
                pos_chain2,
                nodes1,
                nodes2,
                ax,
                1,
                2,
                "y position",
                "z position",
            )
        elif projection == "pca":
            try:
                from sklearn.decomposition import PCA
            except ImportError:
                Warning(
                    "scikit-learn is not installed, the PCA orientation cannot be used."
                    "You can install scikit-learn with pip install"
                )

            # Apply PCA
            pca = PCA(n_components=2)
            pca.fit(np.vstack([pos_chain1, pos_chain2]))
            pos_chain1_2d = pca.transform(pos_chain1)
            pos_chain2_2d = pca.transform(pos_chain2)

            ax.plot(
                pos_chain1_2d[:, 0],
                pos_chain1_2d[:, 1],
                "-",
                label=f"root = {nodes1}",
            )
            ax.plot(
                pos_chain2_2d[:, 0],
                pos_chain2_2d[:, 1],
                "-",
                label=f"root = {nodes2}",
            )

            # Set axis labels
            axes = ["x", "y", "z"]
            x_label = axes[np.argmax(np.abs(pca.components_[0]))]
            y_label = axes[np.argmax(np.abs(pca.components_[1]))]
            x_percent = 100 * (
                np.max(np.abs(pca.components_[0]))
                / np.sum(np.abs(pca.components_[0]))
            )
            y_percent = 100 * (
                np.max(np.abs(pca.components_[1]))
                / np.sum(np.abs(pca.components_[1]))
            )
            ax.set_xlabel(f"{x_percent:.0f}% of {x_label} position")
            ax.set_ylabel(f"{y_percent:.0f}% of {y_label} position")
        else:
            raise ValueError(
                """Error: available projections are:
                    '3d' : for the 3d visualization
                    'xy' or None (default) : 2D projection of axis x and y
                    'xz' : 2D projection of axis x and z
                    'yz' : 2D projection of axis y and z
                    'pca' : PCA projection"""
            )

    connections = [[pos_chain1[i], pos_chain2[j]] for i, j in alignment]

    for connection in connections:
        xyz1 = connection[0]
        xyz2 = connection[1]
        x_pos = [xyz1[0], xyz2[0]]
        y_pos = [xyz1[1], xyz2[1]]
        z_pos = [xyz1[2], xyz2[2]]

        if alig and projection != "pca":
            if projection == "3d":
                ax.plot(x_pos, y_pos, z_pos, "k--", color="grey")
            else:
                ax.plot(x_pos, y_pos, "k--", color="grey")

    ax.set_aspect("equal")
    ax.legend()
    fig.tight_layout()

    if alig and projection == "pca":
        warnings.warn(
            "Error: not possible to show alignment in PCA projection !",
            UserWarning,
            stacklevel=2,
        )

    return distance, fig

plot_subtree

plot_subtree(
    lT: LineageTree,
    node: int,
    end_time: int | None = None,
    figsize: tuple[int, int] = (4, 7),
    dpi: int = 150,
    vert_gap: int = 2,
    selected_nodes: list | None = None,
    selected_edges: list | None = None,
    color_of_nodes: str | dict = "magenta",
    color_of_edges: str | dict = "magenta",
    size: int | float = 10,
    lw: float = 0.1,
    default_color: str = "black",
    ax: Axes | None = None,
) -> tuple[plt.Figure, plt.Axes]

Plots the subtree spawn by a node.

Parameters:

Name	Type	Description	Default
lT	LineageTree	The LineageTree instance.	required
node	int	The id of the node that is going to be plotted.	required
end_time	int	The last timepoint to be considered, if None or not provided the last timepoint of the dataset (t_e) is considered.	None
figsize	tuple of 2 ints	The size of the figure, deafults to (4,7)	(4,7)
vert_gap	int	The verical gap of a node when it divides, defaults to 2.	2
dpi	int	The dpi of the figure, defaults to 150	150
selected_nodes	list	The nodes that are selected by the user to be colored in a different color, defaults to None	None
selected_edges	list	The edges that are selected by the user to be colored in a different color, defaults to None	None
color_of_nodes	str	The color of the nodes to be colored, except the default colored ones, defaults to "magenta"	"magenta"
color_of_edges	str	The color of the edges to be colored, except the default colored ones, defaults to "magenta"	"magenta"
size	int	The size of the nodes, defaults to 10	10
lw	float	The widthe of the edges of the tree graph, defaults to 0.1	0.1
default_color	str	The default color of nodes and edges, defaults to "black"	"black"
ax	Axes	The ax where the plot is going to be applied, if not provided or None new axes will be created.	None

Returns:

Type	Description
Figure	The matplotlib figure
Axes	The matplotlib axes

Raises:

Type	Description
Warning	If more than one nodes are received

Source code in src/lineagetree/plot.py

def plot_subtree(
    lT: LineageTree,
    node: int,
    end_time: int | None = None,
    figsize: tuple[int, int] = (4, 7),
    dpi: int = 150,
    vert_gap: int = 2,
    selected_nodes: list | None = None,
    selected_edges: list | None = None,
    color_of_nodes: str | dict = "magenta",
    color_of_edges: str | dict = "magenta",
    size: int | float = 10,
    lw: float = 0.1,
    default_color: str = "black",
    ax: plt.Axes | None = None,
) -> tuple[plt.Figure, plt.Axes]:
    """Plots the subtree spawn by a node.

    Parameters
    ----------
    lT : LineageTree
        The LineageTree instance.
    node : int
        The id of the node that is going to be plotted.
    end_time : int, optional
        The last timepoint to be considered, if None or not provided the last timepoint of the dataset (t_e) is considered.
    figsize : tuple of 2 ints, default=(4,7)
        The size of the figure, deafults to (4,7)
    vert_gap : int, default=2
        The verical gap of a node when it divides, defaults to 2.
    dpi : int, default=150
        The dpi of the figure, defaults to 150
    selected_nodes : list, optional
        The nodes that are selected by the user to be colored in a different color, defaults to None
    selected_edges : list, optional
        The edges that are selected by the user to be colored in a different color, defaults to None
    color_of_nodes : str, default="magenta"
        The color of the nodes to be colored, except the default colored ones, defaults to "magenta"
    color_of_edges : str, default="magenta"
        The color of the edges to be colored, except the default colored ones, defaults to "magenta"
    size : int, default=10
        The size of the nodes, defaults to 10
    lw : float, default=0.1
        The widthe of the edges of the tree graph, defaults to 0.1
    default_color : str, default="black"
        The default color of nodes and edges, defaults to "black"
    ax : plt.Axes, optional
        The ax where the plot is going to be applied, if not provided or None new axes will be created.

    Returns
    -------
    plt.Figure
        The matplotlib figure
    plt.Axes
        The matplotlib axes

    Raises
    ------
    Warning
        If more than one nodes are received
    """
    graph = lT._create_dict_of_plots(node, end_time=end_time)
    if len(graph) > 1:
        raise Warning(
            "Please use lT.plot_all_lineages(nodes) for plotting multiple nodes."
        )
    graph = graph[0]
    if not ax:
        _, ax = plt.subplots(nrows=1, ncols=1, figsize=figsize, dpi=dpi)
    lT.draw_tree_graph(
        hier=hierarchical_pos(
            graph,
            graph["root"],
            vert_gap=vert_gap,
            ycenter=-int(lT._time[node]),
        ),
        selected_edges=selected_edges,
        selected_nodes=selected_nodes,
        color_of_edges=color_of_edges,
        color_of_nodes=color_of_nodes,
        default_color=default_color,
        size=size,
        lw=lw,
        lnks_tms=graph,
        ax=ax,
    )
    return ax.get_figure(), ax
